iStation18 GNSS Reference Server for Robust CORS Networks

Why CORS buyers need a next‑generation GNSS reference server

A GNSS reference station is the fixed, high‑quality receiver that anchors every CORS or GBAS network, providing correction data for all connected rovers. For procurement teams, the core requirement is a server that delivers stable, standards‑compliant observations with minimal downtime over many years of operation.

Traditional reference stations often force trade‑offs: a single‑board receiver with limited redundancy, fragmented external hardware for firewall, LTE and UPS, and complex integration work at each site. In contrast, the latest guidance from bodies like the International GNSS Service (IGS) stresses long‑term stability, robust power and communications, and full multi‑constellation tracking as baseline requirements.

iStation18 was designed specifically around these expectations. It is a professional GNSS reference server for GBAS and CORS networks, with built‑in redundancy in satellite tracking, power, environmental monitoring and communications. For a channel partner configuring networks in Europe or globally, this means fewer product combinations to validate and a more predictable bill of materials across projects.

A concrete example: instead of specifying separate GNSS receiver, firewall, LTE router, optical‑to‑electrical converter, UPS and batteries for a metropolitan GBAS build‑out, a buyer can standardize on iStation18 as a single integrated node type. This reduces per‑site engineering time and simplifies future maintenance contracts.

How iStation18 ensures clean GNSS data and real‑time coordination

The primary job of any GNSS reference receiver is to deliver clean, reliable measurements across all major constellations. iStation18 tracks BDS (including BDS‑3), GPS, GLONASS, Galileo and QZSS on multiple frequencies, aligning with the multi‑constellation expectations common in high‑end reference systems such as Septentrio’s range of receivers described by Milexia (Milexia).

iStation18 incorporates SpatiX Interference Mitigation algorithms and multi‑path signal rejection technology. This is particularly important because multipath and RF interference are now recognized as key site selection and operations risks; research on site‑survey toolboxes presented at ION GNSS+ 2019 shows that even small reflective surfaces can degrade reference‑station observables if not controlled (ION GNSS+ 2019).

In practice, this means that even in challenging urban or industrial environments, iStation18 maintains high signal‑to‑noise ratios and minimizes cycle slips by rejecting reflected and interfered signals before they contaminate the data stream. For a distributor supporting cadastral networks or real‑time deformation monitoring, this reduces the number of support tickets related to data quality and makes it easier to meet published SLAs.

The platform also supports rapid real‑time network coordination. With simultaneous tracking of all visible signals and support for standard real‑time protocols like RTCM 2.x/3.x, CMR/CMR+ and BINEX over TCP/IP, NTRIP and serial outputs, integrators can plug iStation18 into existing CORS management software with minimal custom development.

Reliability, power backup and secure communication for mission‑critical CORS

For mission‑critical CORS and GBAS networks, the GNSS reference server must continue operating through power cuts, link failures and hardware faults. iStation18’s redundancy design addresses each of these risks in hardware and firmware.

iStation18 supports up to three GNSS receiver boards operating simultaneously in a single chassis. This multi‑board architecture allows operators to combine proprietary SpatiX GNSS OEM boards with popular third‑party boards, or to run parallel data streams for redundancy and cross‑validation. If one board fails, the network can automatically fall back to another without losing service.

On the power side, iStation18 accepts both AC and DC inputs with automatic switching and an isolation circuit designed for very wide input voltage ranges. An integrated Li‑ion battery supports more than 30 hours of continuous operation, effectively acting as an internal UPS while also being able to power other devices. For remote installations where truck rolls are expensive, this significantly reduces outage risk.

Communication reliability is handled through dual Ethernet/LTE paths with automatic link switching and millisecond‑level link failure detection. The built‑in router supports static and dynamic routing, IPsec VPN tunnels and AES/SHA encryption, so operators can backhaul data over public LTE or shared corporate networks while still meeting internal IT security requirements.

Flexible integration, formats and cluster management for network operators

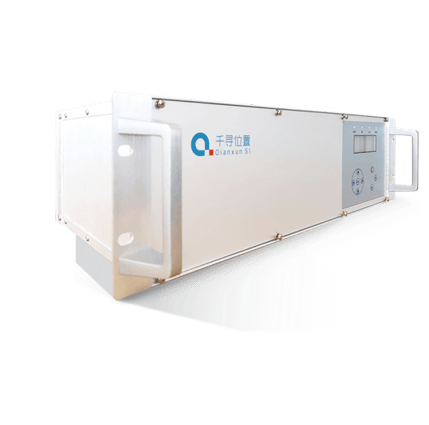

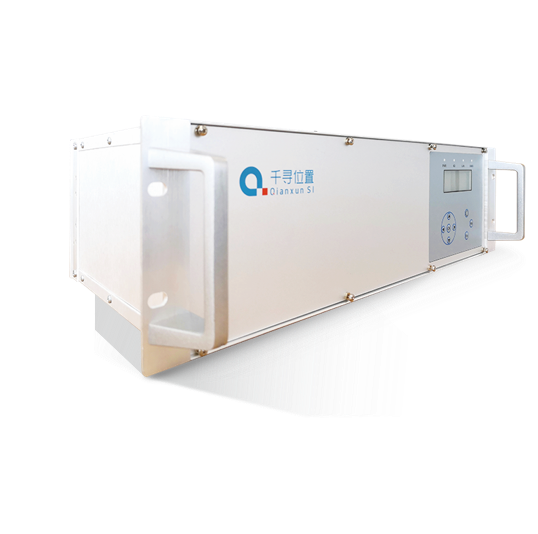

iStation18 is built as a PXI‑based all‑in‑one server that consolidates GNSS receiver, firewall, optical‑to‑electrical transducer, LTE modem, UPS and battery into a single compact unit. Each module is independent and can be customized, giving integrators flexibility while still keeping the physical footprint small.

From a data‑handling perspective, iStation18 supports standard open formats such as RINEX 3.xx and CMR/CMR+, alongside SpatiX’s own QXB format with ZIP compression to store more data in less space. Up to six high‑rate logging sessions are supported with 32 GB of flash storage, allowing operators to maintain parallel archives for legal traceability, quality control and customer‑specific data products.

Data can be accessed via FTP and HTTP, and output over TCP/IP, NTRIP, OSS and serial ports. This aligns well with the IGS guidelines’ emphasis on RINEX‑based, multi‑destination distribution and low‑latency data streaming (IGS), giving network managers confidence that an iStation18‑based design will integrate with established monitoring and archival workflows.

The built‑in web UI and cluster management functions allow centralized firmware upgrades, configuration changes, asset queries and status monitoring. For a regional CORS operator managing dozens of stations, this can translate into many fewer on‑site interventions per year and tighter control over configuration drift.

Key use cases: from cadastral GBAS to smart city monitoring

iStation18 is positioned as more than a conventional CORS reference station; it is designed for demanding GNSS GBAS and monitoring scenarios where continuous, high‑integrity data is mandatory. Typical use cases include cadastral survey GBAS, infrastructure monitoring, meteorology, earthquake observation and smart‑city positioning services.

In cadastral and geospatial applications, multi‑constellation, multi‑frequency tracking improves availability in dense urban or forested areas, while interference mitigation keeps ambiguity fixing stable near reflective buildings. For a French GNSS integrator deploying a mixed RTK and PPP‑RTK network, iStation18 can serve as the core reference server in each regional hub.

For structural health and deformation monitoring of bridges, dams or high‑rise assets, the combination of 30‑hour internal battery, redundant GNSS boards and secure backhaul reduces the chance of missing critical displacement events during storms or grid outages. Operators can log multiple high‑rate data streams in parallel, supporting both real‑time alerts and detailed forensic analysis.

In smart‑city deployments, iStation18’s integrated LTE and firewall functions simplify installation on existing municipal sites. One example design is to place iStation18 nodes on high‑availability telecom rooftops, using their optical‑to‑electrical interfaces to connect to city fibre while LTE provides a backup path for both GNSS data and management traffic.

How iStation18 reduces lifecycle cost and risk for GNSS distributors

For channel partners and procurement teams, the business case for a professional GNSS reference server rests on total lifecycle cost and project risk, not just initial hardware price. iStation18 was engineered to address these procurement‑level concerns directly.

Integrating receiver, firewall, LTE, UPS and batteries into a single PXI‑based chassis reduces the number of SKUs to qualify, stock and support. Fewer external devices mean fewer power supplies, connectors and firmware versions to manage in the field. Over a 5‑ to 10‑year network lifecycle, this simplification can translate into lower spares inventory and shorter incident‑resolution times.

Redundant GNSS boards, long‑duration battery backup and secure, dual‑path communications all reduce the probability of costly service outages. For networks supporting subscription‑based RTK services or critical monitoring contracts, every avoided outage protects recurring revenue and helps maintain customer confidence.

Finally, the support for open data formats, multiple communication protocols and flexible module customization gives distributors room to adapt iStation18 to local regulatory or customer‑specific requirements without redesigning their entire solution stack. This combination of technical robustness and commercial flexibility is what makes iStation18 a strong candidate as the backbone of modern CORS and GBAS offerings.
