iStation18: A New Standard for GNSS Reference Stations

Why GNSS distributors need next‑generation reference stations

A GNSS reference station is the fixed receiver at the heart of every CORS or GBAS network, generating correction data that downstream users depend on for centimeter‑level positioning. If that reference node fails or degrades, every rover on the network feels it immediately in the form of downtime, rework, and lost trust.

For channel partners in GNSS and precise positioning, the biggest pain point is risk: integrating multi‑vendor receivers, networking gear, power supplies, and security appliances into a single, reliable reference node is complex and costly. Traditional rack‑based builds often require separate GNSS receivers, firewalls, LTE routers, UPS units, and batteries. Every additional box adds another potential failure point, another configuration to manage, and another support call when something goes wrong.Independent user manuals for classic reference receivers, such as the C18 described by iGage Mapping, outline dozens of steps just to configure Ethernet, streaming ports, and base‑station parameters for CORS use (iGage C18 User Guide). That complexity is multiplied when distributors must also specify, install, and support network security, power conditioning, and external storage.

iStation18 was engineered to remove this integration burden. It combines full‑constellation tracking, hardened power and redundancy, and carrier‑grade communications security into a single, PXI‑based chassis that can be deployed as a CORS node, GBAS station, or multi‑purpose monitoring site with minimal field engineering.

Inside iStation18: satellite tracking and data quality advantages

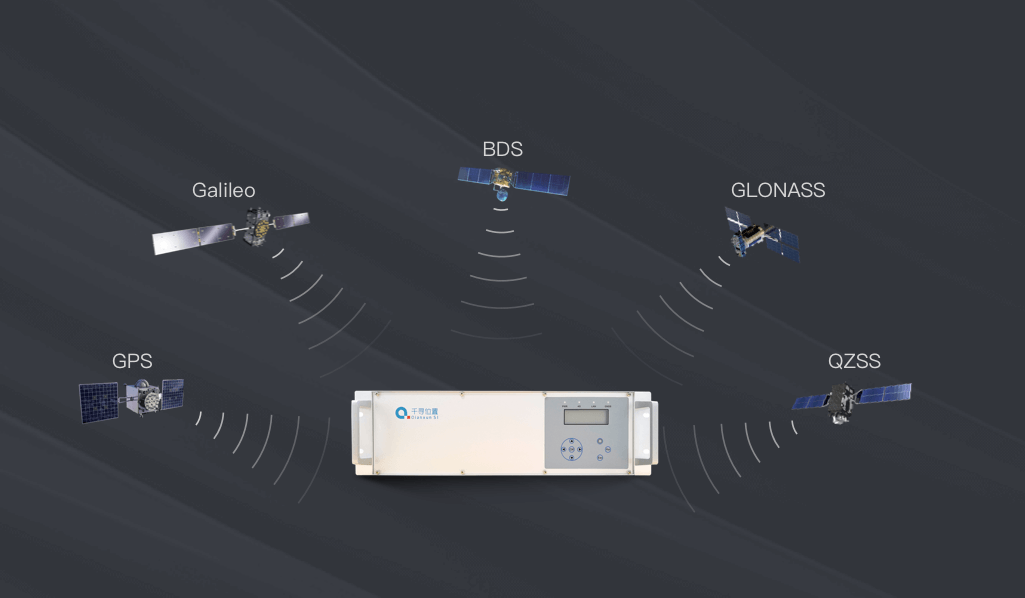

iStation18 is a professional GBAS‑grade GNSS reference server supporting all major constellations and frequencies, including BDS‑3, GPS, GLONASS, Galileo, and QZSS. By tracking multiple systems and bands simultaneously, it provides better geometry, faster ambiguity resolution, and more robust service under masking or interference.

Independent studies on multi‑constellation, multi‑frequency GBAS show that well‑modeled pseudorange noise and multipath directly increase approach availability and integrity margins (ION GBAS multipath modeling paper). iStation18 targets exactly these error sources with SpatiX Interference Mitigation algorithms and multi‑path signal rejection technology at the receiver level, before data is even logged or streamed.

For distributors, this translates into a concrete selling point: improved data quality in difficult environments such as urban cadastral survey sites, deformation monitoring of bridges or high‑rise structures, and smart‑city sensor networks placed near reflective surfaces. Instead of simply advertising "multi‑constellation support," iStation18 delivers clean observables that reduce correction noise and downstream positioning jitter.

iStation18 also supports full‑constellation and full‑frequency tracking across up to three GNSS boards working simultaneously. This is particularly attractive for network operators who want to mix a proprietary SpatiX OEM board with third‑party boards, or who need parallel data streams (e.g., one board optimized for geodetic CORS, another for meteorology or ionospheric research) from a single physical site.

All‑in‑one PXI design: reducing integration and maintenance risk

The core hardware architecture of iStation18 is an all‑in‑one server based on PXI. Each function—GNSS receiver, firewall, optical‑to‑electrical transducer, LTE modem, UPS, and battery—is implemented as an independent plug‑in module inside a single chassis, instead of as separate boxes in a rack.

For channel partners and procurement teams, this reduces risk in three specific ways. First, there is a single vendor and single support path for the entire reference node. You no longer need to troubleshoot whether a connectivity issue is caused by the firewall, the LTE router, or the GNSS receiver firmware; the whole stack is designed, qualified, and supported as one system.

Second, modular PXI integration simplifies customization. If a customer site requires additional LTE redundancy, extra storage, or specific fiber interfaces, you can address it at the module level without redesigning the overall cabinet. This is far more scalable than building one‑off rack integrations that are hard to replicate and maintain.

Third, the compact form factor reduces installation time and total cost. A typical multi‑box CORS installation not only consumes more rack space, but also requires more power distribution, cabling, labeling, and documentation. With iStation18, a site can be commissioned faster by a smaller field crew, which directly improves your project margins and makes your proposals more competitive on both CAPEX and deployment timelines.

Redundancy, power design, and uptime for mission‑critical networks

Distributors serving government, aviation, marine, or smart‑city contracts are increasingly judged on network availability SLAs. iStation18’s redundancy and power design are built to meet those expectations in a single unit instead of via external add‑ons and scripts.

iStation18 can host up to three GNSS boards in parallel, each capable of tracking all supported constellations. That means hardware redundancy for the core measurement engine: if one board fails or requires maintenance, others can continue to serve corrections. Unlike simple hot‑spare receivers connected over Ethernet, these boards share common timing and environmental monitoring inside the same chassis, simplifying failover logic and health monitoring.

On the power side, iStation18 supports AC/DC dual inputs with automatic switching, an input isolation circuit, and an ultra‑wide voltage design to accommodate unstable grids. The integrated lithium battery provides more than 30 hours of continuous operation and can function as a UPS for external devices on site.

In practical terms, this means a reference node at a remote agricultural CORS, a coastal deformation‑monitoring station, or an urban smart‑city site can ride through extended outages without losing data or service. Traditional GNSS manuals warn that users must "be prepared for down time and failures" and avoid using legacy receivers for critical navigation (C18 safety notice). iStation18’s power and redundancy design directly addresses that concern for mission‑critical applications.

Secure communications, formats, and protocols channel partners rely on

Reference stations today are exposed to open networks, so security and interoperability are no longer optional extras. iStation18 integrates routing, VPN, and data‑format management natively, eliminating the need for external firewalls or protocol converters in most deployments.

iStation18 supports static and dynamic routing protocols, millisecond‑level link‑failure detection, and IPsec VPN tunnels using standard AES/SHA encryption. For operators running corrections over public LTE or shared fiber, this enables end‑to‑end encryption and site‑to‑datacenter tunnels without buying additional security appliances.

On the data side, iStation18 supports Rinex 3.xx and SpatiX’s QXB proprietary format with ZIP compression, plus CMR, CMR+, RTCM v2.x/v3.x, BINEX, and NMEA 0183 streaming over TCP/IP, NTRIP, OSS, serial ports, FTP, and HTTP. Up to six high‑rate logging sessions can run concurrently on 32 GB of onboard flash.

For distributors, this breadth of protocol support means iStation18 can drop into existing national CORS networks, aviation GBAS testbeds, or private construction and mining networks without forcing backend changes. You can confidently position it as a low‑risk upgrade path, with modern security and redundancy, while remaining fully compatible with existing rovers and processing software.

How to position iStation18 in bids and solution portfolios

iStation18 is more than a GNSS receiver; it is a professional GNSS reference server designed to anchor complete positioning services such as SpatiX Positioning Service and customer‑owned CORS or GBAS networks. For GNSS distributors, the key is to frame it in business and risk terms, not just technical specifications.

For government cadastral and geospatial projects, emphasize that iStation18’s interference mitigation and multi‑path rejection reduce re‑surveys and disputes by delivering cleaner correction data. For agriculture and machine‑control networks, highlight the 30‑hour battery, LTE/Ethernet auto‑switching, and modular PXI design that minimize unplanned downtime during peak seasons.

In aviation, marine, and smart‑city RFPs, position iStation18 as a consolidated, secure node that simplifies compliance. Built‑in IPsec VPN, routing, cluster management, and web‑based UI reduce operational overhead and audit scope compared with multi‑vendor stacks. The intelligent cluster management layer allows firmware upgrades, asset queries, and health monitoring across fleets, supporting large‑scale deployments with lean operational teams.

Finally, for your own portfolio, iStation18 is a strategic platform: a single reference architecture you can replicate across countries and verticals, with predictable installation, support, and performance characteristics. That consistency is what allows channel partners to scale from one‑off pilot projects to profitable, long‑term GNSS positioning businesses.
